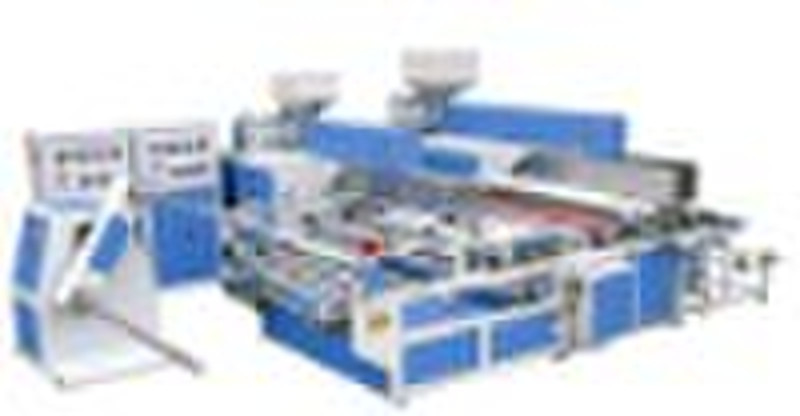

Bubble Laminated Machine

1. Main parts: two extrusion parts, two electrical control parts,one aluminized film unwinding units, forming part and winding part; 2. Be able to produce five layers air bubble film 3. Same natures with air bubble film machine, this machine can produce two or three layers air bubble film, can laminate the bubble film with aluminum film, brown paper and other with PE thin film into four layers laminated films with special use. 4. Adopting Japanese "Nano" technology and high density, anti high temperature silica rubber roller to laminate film, the film will not stick to the rubber roller, pressing film smoothly, good laminated result to the brown paper and aluminum film. 5.. Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights. 6. Be able to manufacture various width specifications of air bubble film machines between 1000-2500mm.Model Width (mm) Max output (kg/h) Max efficiency (m/h) Total power (kw) Consumption power (kw) Layers Weight (kg) MX-B120FA 1200 140 1000 105 50 70 5 6500 MX-B150FA 1500 170 1000 118 60 80 5 7300 MX-B150SA 1500 220 1000 186 85 130 Other features:
